11000 Series Drawer Cabinets ( Width x Depth: 1010 x 725 mm )

11080

DRAWER CABINET WITH 7 DRAWERS

Width: 1010 mm
Depth: 725 mm
Height: 800 mm
Color: Ral 5015 electrostatic powder painted

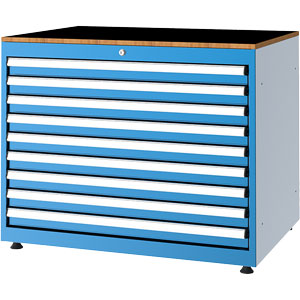

11081

DRAWER CABINET WITH 9 DRAWERS

Width: 1010 mm
Depth: 725 mm
Height: 800 mm
Color: Ral 5015 electrostatic powder painted

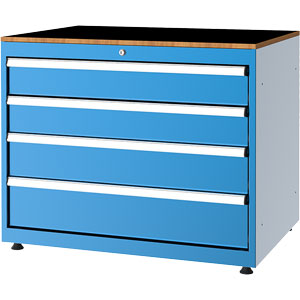

11082

DRAWER CABINET WITH 4 DRAWERS

Width: 1010 mm
Depth: 725 mm
Height: 800 mm
Color: Ral 5015 electrostatic powder painted

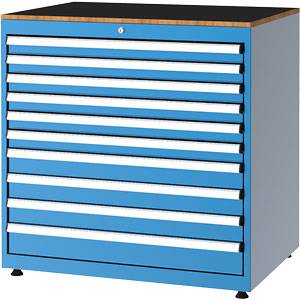

11100

DRAWER CABINET WITH 10 DRAWERS

Width: 1010 mm
Depth: 725 mm
Height: 1000 mm
Color: Ral 5015 electrostatic powder painted

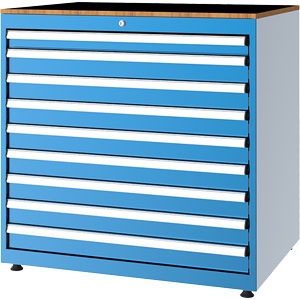

11101

DRAWER CABINET WITH 9 DRAWERS

Width: 1010 mm
Depth: 725 mm
Height: 1000 mm
Color: Ral 5015 electrostatic powder painted

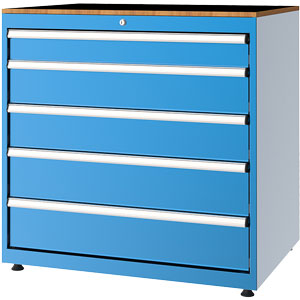

11102

DRAWER CABINET WITH 5 DRAWERS

Width: 1010 mm
Depth: 725 mm
Height: 1000 mm
Color: Ral 5015 electrostatic powder painted

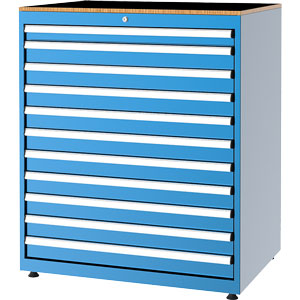

11200

DRAWER CABINET WITH 11 DRAWERS

Width: 1010 mm
Depth: 725 mm
Height: 1200 mm
Color: Ral 5015 electrostatic powder painted

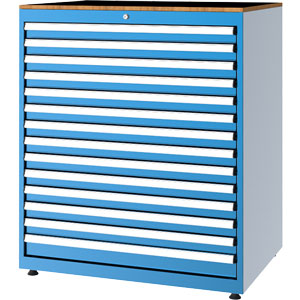

11201

DRAWER CABINET WITH 14 DRAWERS

Width: 1010 mm
Depth: 725 mm
Height: 1200 mm
Color: Ral 5015 electrostatic powder painted

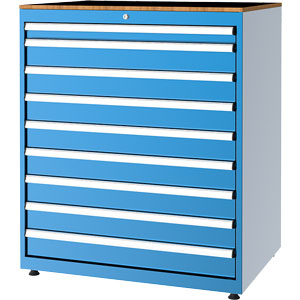

11202

DRAWER CABINET WITH 9 DRAWERS

Width: 1010 mm
Depth: 725 mm
Height: 1200 mm
Color: Ral 5015 electrostatic powder painted

Drawer Models:

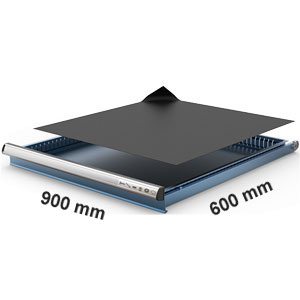

standard drawer

With Metal Separator (Optional)

With Plastic Box Separator (Optional)

With Plastic Channel Separator (Optional)

Drawer Specification:

11000 Series Drawer Cabinet’s model body made of 1,20mm DKP metal sheet. Includes adjustable feet for uneven ground surfaces. 75kg load capacity per drawer. Heavy duty robust body frame welded and has vertical reinforcements on each 4 corners. 900X600mm net usable interior surface. Black laminated chipboard on top. Contains central locking mechanism and anti-tilt mechanism. Coated with electrostatic powder paint. Drawer sliders made of 2,50mm HRP metal and run on 6201zz ball-bearings. Drawer interior walls have metal separator slots in each 17mm to organise partitions properly.
