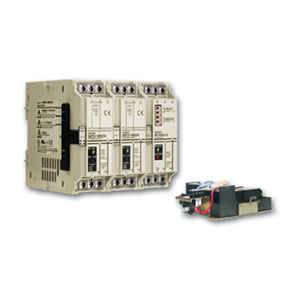

S8T-DCBU-01

Battery charger unit

The S8T-DCBU-01 battery backup block supplies 24 VDC for a fixed period of time during AC input outages to considerably improve system reliability.

Spesification

Downloads

Spesification

Product	Input voltage	Output voltage	Output current			Order code
DC back-up block	24 to 28 VDC	24 V	3.7 A/8 A			S8T-DCBU-01
Battery holder	−	−	−			S82Y-TS01
Product	Input voltage	Output voltage	Output current	Type		Order code
Basic block (use together with the DC back-up block)	100 to 240 VAC	24 V	2.5 A	Screw terminal type	With bus line connectors	S8TS-06024-E1
				Screw terminal type	Without bus line connectors	S8TS-06024
				Connector terminal type	With bus line connectors	S8TS-06024F-E1
				Connector terminal type	Without bus line connectors	S8TS-06024F
Product	Back-up time	Overcurrent protection operating point selector				Order code
Battery	8 min./3.7 A	5.7 A (typ.)	−			LC-R122R2PG
Battery	4 min./8.0 A	5.7 A (typ.)	11.7 A (typ.)			LC-R123R4PG

Note: The S8TS DC back-up block is for S8TS power supplies only.

Item	Size in mm (H×W×D)
S8T-DCBU-01	120×43×130
Battery holder	82×185.7×222.25
